Pump Adapter Guide
Pump adapters are used to secure the pump to a variety of containers. Please use the guide below when choosing an adapter for your application.1-1/2" Pumps
236 Series - 336 Series - 436 Series |
 |
 |
| ADPT-A01 For ACT Butress Therad (2-3/4") |
ADPT-B01 2-5/8" Poly Drum Butress |

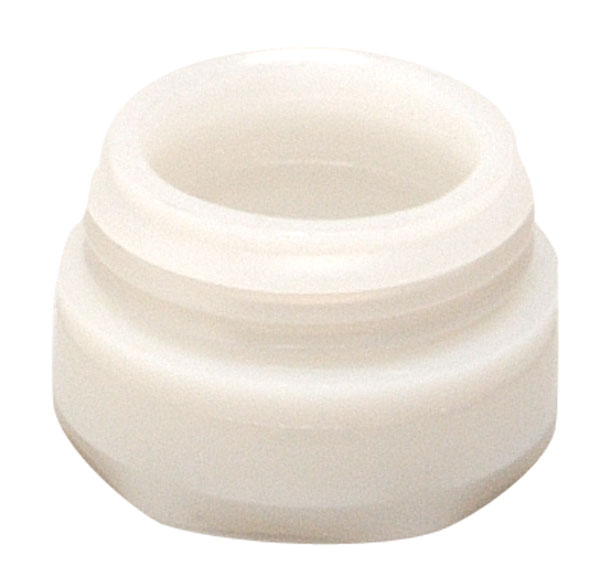

ADPT-B02 For CCA or Rieke Butress Thread (2-3/4") Use with ADPT-S01 |
 |
 |
|
| ADPT-P01 For 83B Closure |

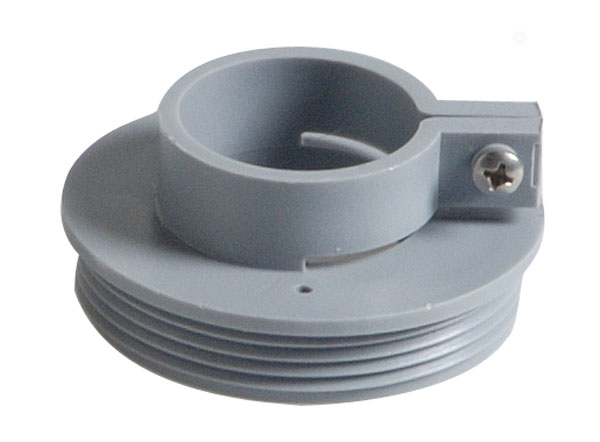

ADPT-S01 2" IPS Standard |

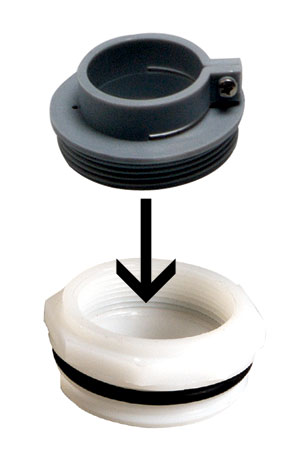

| 2" IPS adapter ADPT-S01 screws into ACT Butress Thread adapter ADPT-A01 |  |

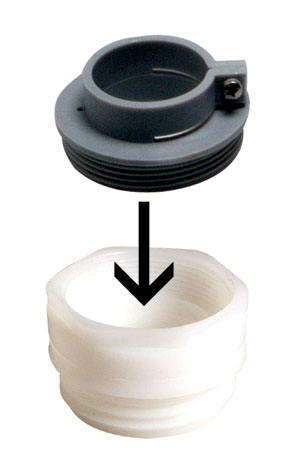

| 2" IPS adapter ADPT-S01 screws into CCA or Rieke Butress Thread adapter ADPT-B02 |  |
1-1/4” Pumps
CF Series - CP Series - DL SeriesDP Series - MP Series - PP Series
 |
 |
 |

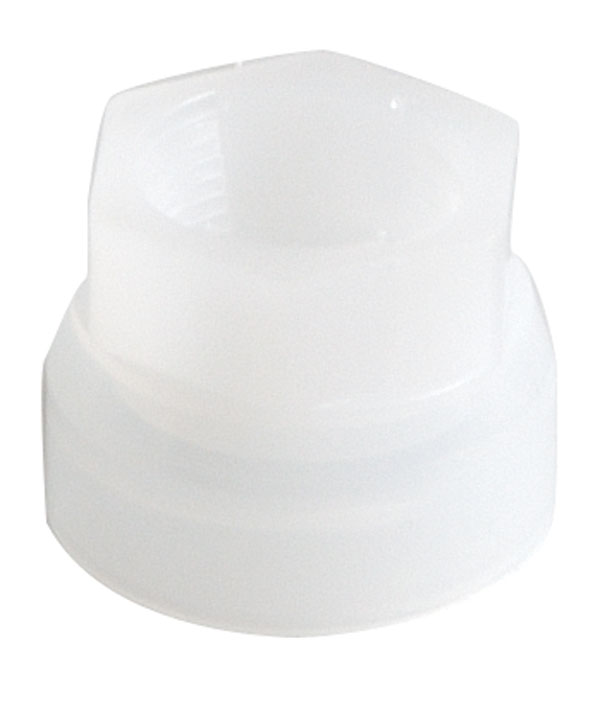

| ADPT-C01 For Rieke SR |

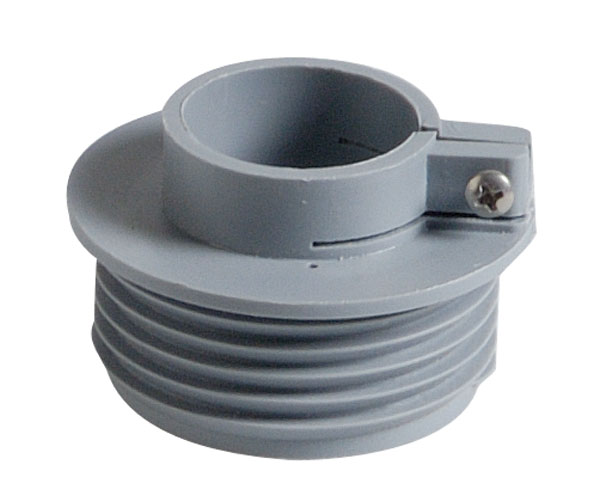

APDT-E01 For European (Tri-Sure) |
ADPT-M01 For 70mm or 3/4" Thread |
 |
 |
|
| ADPT-R01 For Reike Jr. or III |
ADPT-S02 2' IPS Standard |
|
 |
 |
 |
| ADPT-K01 For 51 mm |
ADPT-D01 For 61MM |
APT-F01 For 63 MM |
Note:
Adapters for 51 mm, 61 mm and 63 mm containers must be installed at the factory.
