Petroleum Pumps - Buna-N 336 & PP Series
Beckson’s

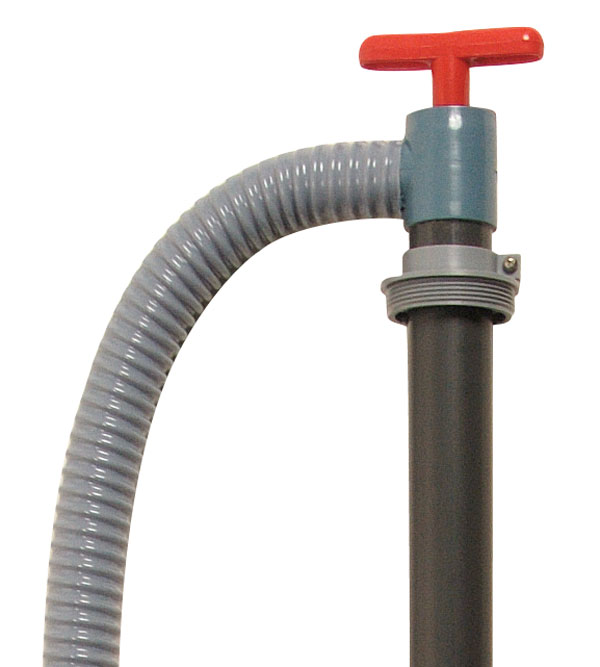

336PF & PP series hand pumps are constructed of PVC
with urethane valves and Buna-N seals. These models incorporate
the same design features of our acid transfer pumps, and come
with a clear vinyl hose (PP series) or a reinforced vinyl hose (336
series) The PP series pumps are 1-1/4” diameter,
36” long @ 11 oz.
per stroke. The 336 series pumps are 1-1/2” diameter,
38” long @
28 oz. per stroke.WARNING: NOT FOR HOT OIL
See adapter guide for proper adapter.
Individually packaged.
| Stock Number | Adapter | Hose Length |
| 336PF3 | None | 3 feet |
| 336PF3-S | Std 2" IPS Bung | 3 feet |
| 336PF6 | None | 6 feet |
| 336PF6-S | Std 2" IPS Bung | 6 feet |
| PP3648S | Std 2" IPS Bung | 4 feet |
Buna-N Kerosene/ Diesel Siphon Pumps
Model: 9-A
Length” 9”Diameter: 1-1/4”
4 oz. per stroke
Siphon: 1 gal/min.
Supplied with clear tubing solvent
welded to intake (6’) & outlet (3’)
WARNING: NOT FOR HOT OIL

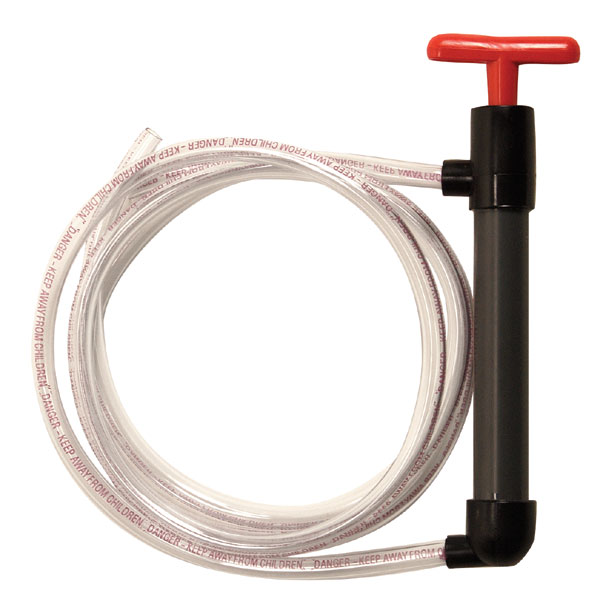

Model:
9PC
Length: 9”
Diameter” 1-1/4”
4 oz. per stroke
Siphon: 1 gal/min.
Supplied with 8’ clear tubing.
Cut tubing to desired intake
and outlet length.
WARNING: NOT FOR HOT OIL
SIPHON PUMP FEATURES
- Siphons downhill if liquid level in source is higher than receptacle. Transfers kerosene, diesel fuel & water. Acts as a positive displacement hand lift pump.
- Non-metallic, will not spark or mar finishes
- Non Corrosive-Non Rusting
- Siphon action stops when handle is depressed and hose removed from source
WARNING! Plan carefully for liquid to drain from hose after dispensing.
WARNING! Remove pump from container when not in use to prevent unintentional siphon action or unauthorized use.
Buna-N / Polyurethane - Automotive Pumps
Beckson’s automotive hand pumps are an effective and easy to use tool for the transfer of oils and fuel. The 16PC model offers a variety of hose diameter and lengths for those hard to reach locations. The 12PGA model is specially adapted to pump crankcase oil from engines equipped with threaded fittings on the top of the dipstick tube. The threaded adapter fits standard male garden hose couplers. Both pumps are constructed of tough, non-sparking PVC and are self-priming.

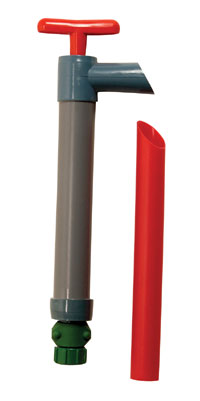

Model: 12PGA
Length: 12-3/4"Diameter: 1-1/2"
Red discharge tube:
1-1/4" x 10"
WARNING: NOT FOR HOT OIL

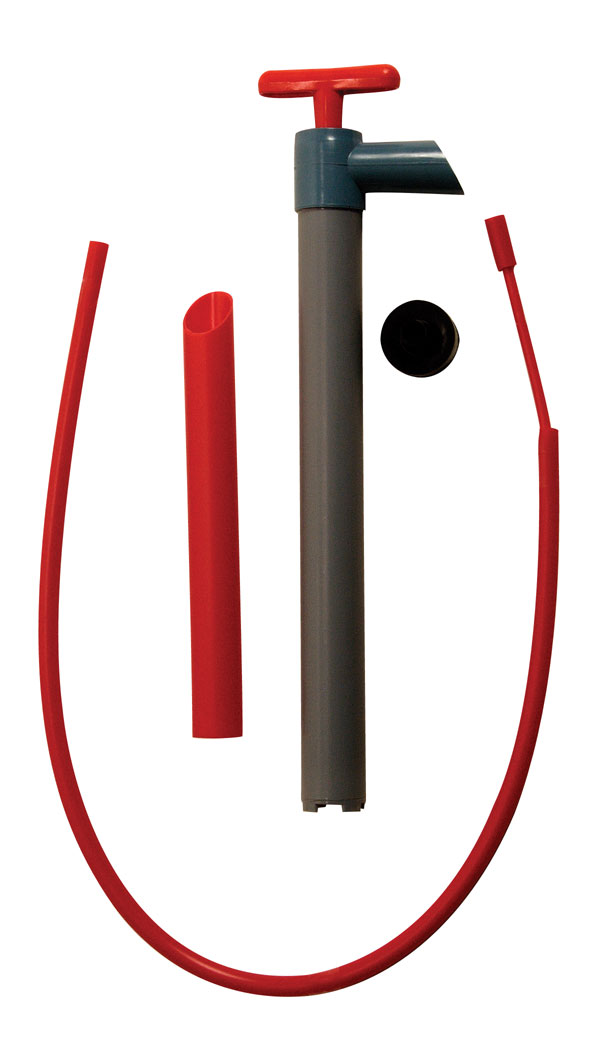

Model: 16PC
Length: 16"Diameter: 1-1/2"
Pumps: 10 oz./stroke
Two intake tubes:
1/2" x 36"
1/4" x 36" w/adptr
Red discharge tube for oil:
1-1/4" x 10"
WARNING: NOT FOR HOT OIL
